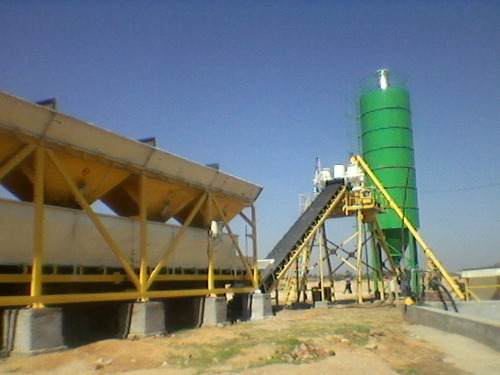

Inline Concrete Plant

Name: Inline Concrete Plant
Brand: GAYATRI ENGIMECH PVT. LTD.
Price: 1500000 INR
Availability: InStock

1500000 INR/Unit

Get a Price/Quote

Product Details:

Product Type Inline Concrete Plant
General Use Industrial, Construction
Material Other
Type Automatic Batching Plant
Weight (kg) ~15000 Kg
Computerized Yes
Automatic Fully Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Inline Concrete Plant Price And Quantity

Minimum Order Quantity 1 Unit
Price 1500000 INR/Unit

Inline Concrete Plant Product Specifications

Feature Easy installation, High performance, Durable structure
Voltage 415 V
Product Type Inline Concrete Plant
Control System PLC Control Panel
Computerized Yes
Discharging Height 4.1 m
General Use Industrial, Construction
Hopper Quantity 3-4
Material Other
Conveyor Capacity 350-450 TPH
Dimension (L*W*H) 11500 mm x 2300 mm x 10800 mm
Hopper Capacity 3-4 x 4 m³
Power Consumption 75-100 kW
Weight (kg) ~15000 Kg
Type Automatic Batching Plant
Storage Capacity 25-60 m³/hr (Mixing Capacity)
Mixing Drum Speed 18-22 rpm
Automatic Fully Automatic
Color Yellow & Blue
Power Source Electric

Mixer Type Twin Shaft Mixer
Weighing System Load Cell Based
Cement Feeding Mode Screw Conveyor
Automation Grade Automatic
Batch Cycle Time 60 Seconds
Water Pump Capacity 750-1500 LPH
Transit Mixer Loading Supported
Aggregate Storage Bins 3-4 Compartments

Product Description

Relying on the technical expertise and outstanding knowledge of our team of resources, we have been successful in carving a niche for ourselves as a prominent manufacturers and suppliers of Inline Concrete Plant. It is highly recognized in the leading market for its special characteristics such as compact design, fully automatic operations and impeccable performance. Inline Concrete Plant is offered by us at highly cost- effective prices without any quality compromise. We strive to make delivery within a set time frame.
Features:

Tested Quality
High Performance
High Efficiency
Long Life
